Donaldson Endurance™ Air Filters



Lookup Guides



Endurance Cross Reference
Donaldson Endurance™ Air Filters for heavy duty applications

Donaldson Endurance™ air filters deliver cost-saving benefits:

  • Longer Engine Life
    Longer Filter Life
    Ideal for Extended Maintenance Intervals
    Double Mileage Guarantee

See Pricing Information or Place an Order

Donaldson Endurance™ Air Filters with exclusive nanofiber technology offer longer engine life, longer filter life, initial efficiency up to 99.99 percent and five times more capacity.

The nanofiber technology causes submicron contaminants to be held on the surface layer of smaller fibers. This filtration characteristic is only possible with this new type of air filtration technology. In on-highway applications, where the contaminant is primarily submicron in size, Donaldson Endurance filters cause less restriction than conventional filters with cellulose media. The smaller interfiber spaces of nanofiber technology have a higher efficiency and capture more contaminant.

The following illustration may help visualize these phenomena: Imagine two filters, a chain link fence and a mosquito net, with a tennis ball being a dirt particle. As you may have observed, a tennis ball will fit quite nicely into an opening of a chain link fence, but will obstruct the hole almost 100%. Now imaging the same tennis ball covering a mosquito net. The tennis ball, at the point of contact with the netting, will obstruct much less filter area than the chain link fence example. In fact, air will flow around the tennis ball all the way to the point of contact. It will take many more particles to obstruct the netting surface area than the chain link fence.

Donaldson Endurance™ air filters are guaranteed to deliver twice the miles between change intervals over cellulose air filters for on-highway applications or customers receive a new filter at no charge.

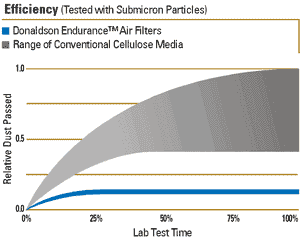

Capacity and Efficiency Graphs

capacity_300pxeaf_efficiency_300px

Donaldson Endurance™ Air Filters
With Nanofiber vs. Conventional Cellulose


nanofiber_200px
Nanofibers have submicron diameters and small interfiber spaces, which result in more contaminant being captured on the surface of the media and lower restriction. Red circles represent the diameter of a 2 micron and a 5 micron particle.






cellulose_200px
Cellulose fibers are larger than nanofibers, and have larger spaces between the fibers, causing contaminant to be held in the depth of the media and plug the airflow path; resulting in higher restriction and less capacity. Red circles represent the diameter of a 2 micron and a 5 micron particle.
